Harley Davidson 103 Engine Torque Specs [Ultimate Guide]

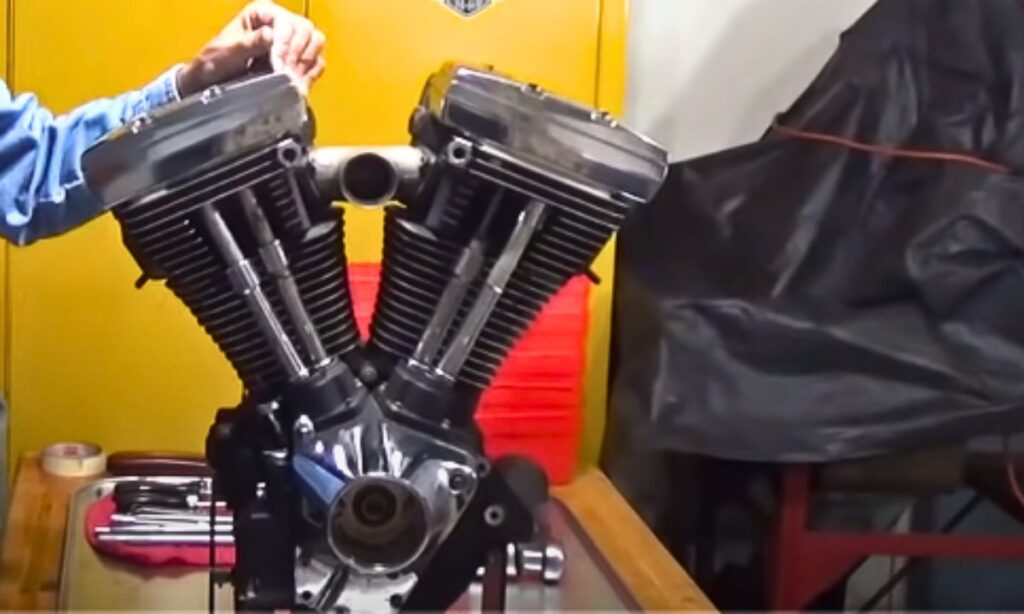

As an avid motorcyclist, I remember the first time I laid eyes on Harley Davidson’s 103 engine.

Nested comfortably in the heart of my bike, it was a sight to behold, a testament to the elegant engineering and raw power that has become synonymous with the Harley brand.

As the responsible owner, I researched the torque specification for the Harley Davidson 103 Engine.

In this article, we will dive deeper into the all torque specifications of the Harley 103 engine.

Harley Davidson 103 Engine Torque Specs

Harley Davidson’s 103 engine, known for its robust performance and high endurance, has particular torque specifications that ensure its optimal functionality.

The cylinder head bolts, critical to engine performance, should typically be torqued to 135-145 ft-lbs in a crisscross sequence.

Other engine components also require specific torque settings for proper synchronization.

For instance, the crankcase bolts should be fastened to 15-18 ft-lbs, while the clutch hub nut requires a torque setting of 70-80 ft-lbs.

It’s crucial to adhere to these torque specifications to maintain the engine’s reliability and longevity.

1. Cylinder Head Bolts

The cylinder head bolts are a crucial component in the Harley Davidson 103 engine, responsible for securing the cylinder head to the engine block.

Initially, these bolts should be tightened using the correct pattern to an initial torque of 9-12 ft-lbs (12-16 Nm).

After this initial tightening, the final torque should be applied in two equal steps.

For the first step, tighten each bolt to 15-20 ft-lbs (20-27 Nm). Then, for the final step, tighten each bolt to 26-35 ft-lbs (35-47 Nm).

It’s crucial to follow this pattern as it ensures an even distribution of pressure across the cylinder head.

Always use a calibrated torque wrench for this task to ensure accurate readings.

2. Rocker Arm Cover Bolts

The rocker arm cover bolts on a Harley 103 engine play an integral role in the overall performance and reliability of the engine.

The rocker’s arm covers house the rocker arms and valves, crucial components of the valve train.

Proper installation and torque specifications are essential for these bolts to ensure they secure the rocker’s arm covers appropriately without causing damage to the engine.

The torque specification for the rocker arm cover bolts is typically 10-12 ft-lbs (13.6-16.2 Nm).

The correct sequence for tightening these bolts is from the centre bolts outward in a crisscross pattern.

This method ensures the rocker arm cover is adequately seated and prevents warping.

3. Spark Plugs

The torque for the spark plugs in a Harley 103 engine should be applied judiciously to ensure optimal performance.

Typically, the spark plugs should be tightened to a torque of 12-18 ft-lbs (16-24 Nm).

Before you start, ensure that the engine is cool to avoid any thermal expansion that might interfere with the tightening.

Use a torque wrench for accuracy, and turn the spark plug clockwise to tighten. Avoid over-tightening, as it can damage the spark plug or the cylinder head.

4. Exhaust Flange Nuts

The exhaust flange nuts on the Harley 103 engine require specific torque for optimal performance.

These nuts should be tightened to a torque of 12-16 ft-lbs (16.27 – 21.7 Nm). To ensure correct torque, follow these steps:

• Start by hand-tightening the exhaust flange nuts onto the exhaust studs, ensuring the exhaust pipe is properly aligned with the exhaust port.
• Using a torque wrench, tighten each nut gradually in a crisscross pattern. This alternating pattern ensures an even distribution of pressure.
• Increase the torque applied incrementally, avoiding any sudden jumps in force. This gradual process is crucial to prevent thread stripping or damage to the stud.
• Continue this process until each nut reaches the recommended torque of 12-16 ft-lbs.

Always use a calibrated torque wrench and follow these steps carefully to maintain the integrity of the exhaust system.

5. Intake Manifold Bolts

For optimal results, these bolts should be tightened to a specification of 120-144 inch lbs (13.6-16.3 Nm).

Please follow the sequential pattern for tightening: begin in the centre and move outwards in a crisscross manner to distribute the load evenly.

6. Crankcase Bolts

To ensure optimal performance, bolts must be fastened to a specific degree of torque.

The recommended torque value for the main bearing cap bolts is typically around 15-20 foot pounds.

The crankcase bolts, another integral component of the engine, also require a precise degree of torque.

These bolts are commonly fastened to a torque of approximately 10-15 foot-pounds.

Lastly, the case half bolts, which secure the two halves of the crankcase, hold the engine together and are typically torqued to around 15-20 foot-pounds.

To ensure you achieve the correct torque, use a calibrated torque wrench and tighten the bolts in a crisscross pattern, gradually increasing the torque in multiple steps.

7. Flywheel Connecting Rods

For the Harley 103 engine, this torque spec is typically set at 15-20 ft-lbs (20.34 – 27.12 Nm) for the initial pass.

Afterwards, a second pass should be performed at an increased torque of 35-40 ft-lbs (47.45 – 54.24 Nm).

8. Cam Cover Bolts

The Cam Cover Bolts should be tightened to a torque of 120-180 in-lbs (inch-pounds), which can be achieved using a calibrated torque wrench.

Always follow a crisscross pattern while tightening the bolts, starting from the centre and moving outwards, to ensure an even distribution of the torque.

9. Primary Cover Bolts

The torque specification for the Primary Cover Bolts on a Harley Davidson 103 engine is typically around 108-120 inch pounds.

However, it’s important to check your model-specific owner’s manual to ensure accuracy.

10. Clutch Hub Nut

The recommended torque for the Clutch Hub Nut is 70-80 ft-lbs (95-108 Nm).

Here is a quick guide on how to properly torque your Clutch Hub Nut:

• Secure the clutch hub to prevent rotation. Special tools like a clutch hub holder can be used for this purpose.
• Using your torque wrench, tighten the clutch hub nut to the recommended 70-80 ft. lbs.
• Verify the torque setting with a calibrated torque wrench.
• Once the Clutch Hub Nut is properly torqued, remove the clutch hub holder and rotate the engine to ensure smooth operation.
• If needed, re-torque the nut until it reaches 70-80 ft-lbs.

11. Transmission Side Cover Bolts

The correct torque is 13-15 foot-pounds.

Transmission Top Cover Bolts

The torque for the Transmission Top Cover Bolts in a Harley Davidson 103 engine is typically specified at 7-9 ft-lbs (foot-pounds).

This is equivalent to 9.5-12.2 Newton meters (N-m). To tighten these bolts, follow the cross pattern or star pattern method.

This ensures an even distribution of pressure across the cover. Use a good quality torque wrench.
